Amplifier

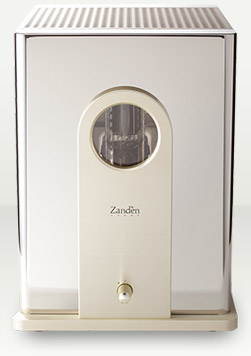

Model 9600
Introduction
The Model 9600 is Zanden's flagship power amplifier. The Model 9600 employs KR845 vacuum tubes. As a result, it succeeds in securing both high power and tonal quality that has been difficult to achieve with vacuum tube amplifiers. As befitting a flagship product, its casing is designed in an ingenious but highly attractive mixture of aluminum plate and highly polished stainless steel to impart a solid, distinctive presence. The Model 9600 uses a fixed-bias, completely full-balanced push-pull circuit. What's more, it incorporates a fully tube rectified power supply circuit. You'll find this product to be uncompromising in all respects of circuitry, design and assembly.
Specification (per monoblock)
- Power output
- 100W (class A)
- Input impedance
- 7.5kΩ
- Output impedance
- 2Ω / 4Ω / 8Ω
- Analog inputs
- XLR
- Frequency response
- 6Hz - 50KHz (-3dB)
- Tube complement
- KR845 x2
- 5687WB x3
- 5AR4 x1
- 5R4WGB x2
- Dimensions
- W: 320mm / H: 440mm / D: 450mm
- Weight
- 42.5kg
